The cooling panel of industrial panels

Taverkont 3

· Continuous panel with seal specially designed for cooling applications



· Excellent insulating and structural performance



· Standard plate coating: lacquered polyester Z140 (Z200 optional) and 25 μ with Food Hygiene Certificate



· Multiple finishings which adapt to the needs of the project: lacquered, polyester, PVC, Granite HDX, PET,HPS, PVDF… and many others



· Guaranteed insulation PIR core density of 40kg/m³ or 38kg/m³



· Standard’s plate thickness 0.5mm (0.4mm and 0.6mm as an option)



· Available width: 1100mm and 1185mm



· Panel’s length: from 2000mm

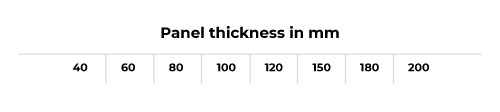

· Available thickness:

grosor panel
pilona

Available all necessary accessories to complete your installation

· The frigorific panel is rectified using a milling at the end of the production line in order to guarantee low assembly tolerances for an optimal insulation.



· Rubber and foam free special design of the joint, allowing a continuous insulation. Its tongue and groove systems provide a perfect finish both at a thermal and aesthetic level.



· Totally automatized production, guaranteeing a quick delivery with the best conditions.



· CE Marking and Certificates: B-s1,d0, also having the FM APPROVAL Certification (4880-4881-4482-4471): the best reaction against fire. EI-60 Certificate for 200mm thickness.



· Wide range of colours: BP1006, B9010, Brick Red, Stainless Steel, Green, Cream, Silver Metallic, R9003.
